LH High Pressure Piston Press

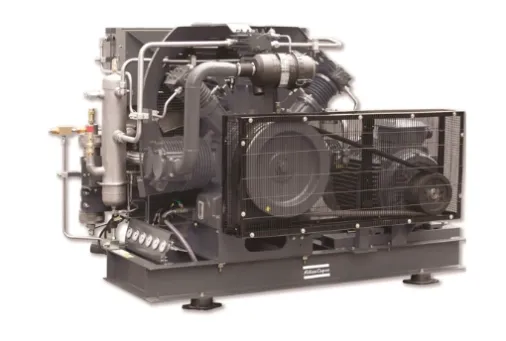

Atlas LH+ High Pressure Piston Machine
LH High Pressure Piston Press
Larger Models
LH+ Series offers outlet pressure up to 100 bar
LH+ Series offers flow rate up to 4 m³/min
Other flow rates and pressures can be customized.
Smaller footprint
More compact configuration
Single unit flow rate up to 4 m³/min, eliminating the need for multiple units.
System safety and protection
Built-in filter achieves 10-micron oil level. Standard features include low oil pressure protection, oil pressure gauge, and oil level sight glass.
Standard configuration includes Siemens motor and starter cabinet.
Standard Siemens motor, power 7.5~75kW.
Standard starter cabinet, IP54 protection rating.
Monitors multiple pressure/temperature/oil pressure levels, motor overload protection.
Remote control, RS485 communication interface.
Standard interstage and after-stage protection.
Standard interstage cooler and aftercooler.
Each cooler is equipped with an air-water separator.
Each stage is equipped with a pressure gauge and safety valve. Each stage is equipped with a check valve.
Standard configuration offers both direct drive and belt drive.
Eliminates transmission losses. Standard configuration includes both direct drive and belt drive options. Air-cooled design. Airflow is driven without an additional motor, resulting in lower energy consumption.
