Oil-injected rotary screw compressors

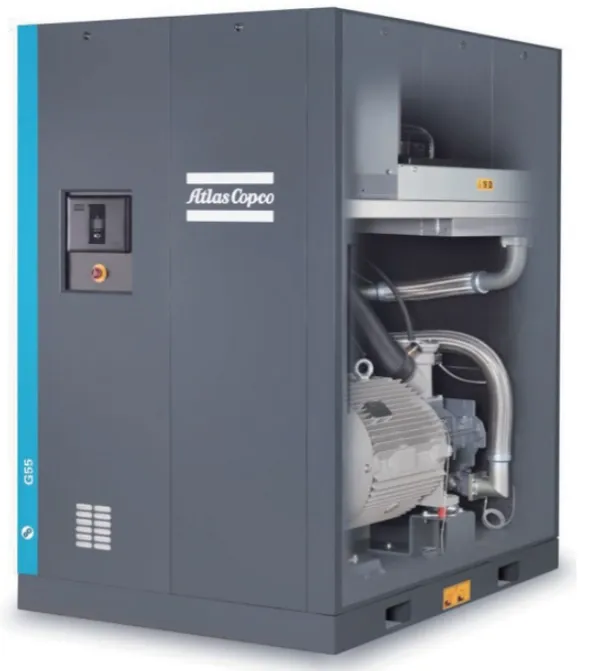

G2-90 Oil-injected screw air compressor
Atlas Copco's G-Series air compressors offer superior sustainability, reliability, and performance while saving on investment costs. This series is designed to provide cost-effective compressed air solutions that meet your most basic needs, operate normally in demanding conditions, and safeguard your production.
G2-90 Oil-injected screw air compressor
- Mature Drive System
· Inherited mature rotor design, high reliability
· High-quality V-belt drive, high efficiency, long service life (suitable for G2-22)
· High-efficiency gear drive, no coupling efficiency loss (suitable for G30-90)
Standard model maximum operating ambient temperature: 46°C
- Reliable Motor
· Motor efficiency class: IE3
Protection class: IP55, Insulation class: F, B
Suitable for continuous operation in harsh environments
- Simple Control
· Simple user interface, durable buttons
Integrates control and protection, high reliability
Elektronikon* touchscreen controller for compressor status visualization (optional)
- Robust Spin Oil Filter Highly filters impurities in oil, extending component lifespan. Oil filter with bypass valve.
- High-Quality Air Solution Optional built-in dryer to prevent pipe contamination and corrosion.
(Suitable for G2-22) Lossless mechanical drainage from the dryer results in greater energy savings.
- High-Efficiency Oil Separation System Premium vertical oil separator design for excellent separation and low oil content. Refined oil separator design reduces compressed air loss during loading/unloading cycles.
- Easy Installation · Convenient and quick maintenance · Easy for forklift handling · Compact design with small footprint.
