DZS DZM Claw Vacuum Pumps
In terms of performance, the DZSVSD+ series helps improve productivity thanks to the integrated VSD+ variable frequency drive and pressure setpoint control. Therefore, the pump can operate at higher speeds while allowing the motor speed to be matched to the process load. The pump can operate continuously at its ultimate vacuum level without overheating. This makes the DZSVSD+ easily meet a wider range of process requirements and vacuum applications.

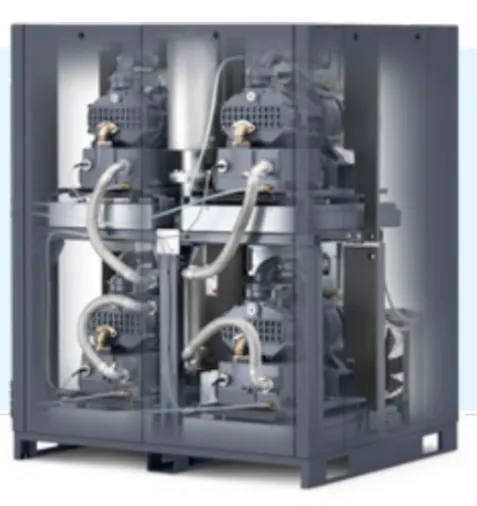

A complete multi-claw vacuum pump system housed within a cabinet. This outstanding solution utilizes a central vacuum system based on Atlas Copco's robust design philosophy to meet larger-scale process requirements. This vacuum pump unit employs a simple "plug-and-play" concept, with all components integrated into a single cabinet, providing a fully controllable system covering pumping speeds from 44 to 1230 m³/h.
At the heart of this system is the highly efficient, durable, and high-performance, multi-certified DZS300V claw pump.
We offer three different system specifications and allow for the selection of multiple centrally controlled kits to expand the central vacuum system. Therefore, whatever your requirements, we can provide a fully functional complete system.
Low Noise
Atlas Copco prides itself on providing environmentally friendly solutions, and its excellence extends to noise reduction.
We are highly regarded in the industry for our design and construction of soundproof enclosures.
Plug and Play
Compared to other central systems, this design significantly reduces installation costs and complexity. The unit includes not only the vacuum pump unit but also a shared intake and exhaust manifold, requiring only simple external piping connections.
The control system includes a variable frequency drive, and all necessary transmitters and safety devices are integrated into a single enclosure, further enhancing simplicity and reliability.
